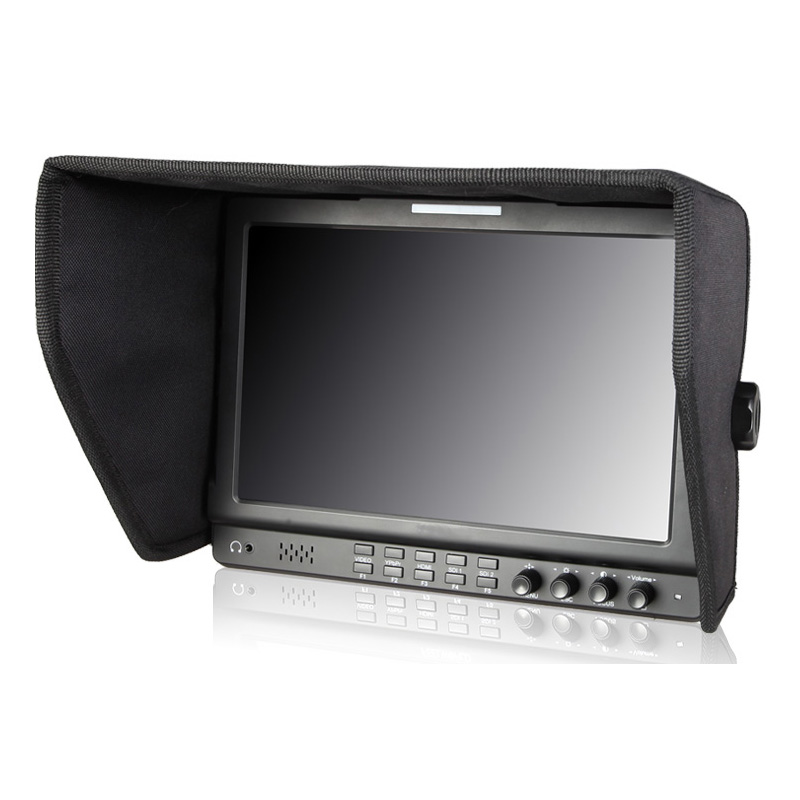

Monitor

Size:  10.1″ IPS

Resolution:  1920×1200 pixels

Dot pitch:  0.113(H)×0.113 (W) mm

Aspect ratio:  16:10

Brightness:  320cd/m²

Contrast ratio:  800:1

Back light:  LED

View Angle:  85°/85°(L/R) 85°/85°(U/D)


Product Detail

Product Tags

Specifications:

Size:  10.1" IPS

Resolution:  1920×1200 pixels

Dot pitch:  0.113(H)×0.113 (W) mm

Aspect ratio:  16:10

Brightness:  320cd/m²

Contrast ratio:  800:1

Back light:  LED

View Angle:  85°/85°(L/R) 85°/85°(U/D)

Monitor

Input:

1 X BNC  3G-SDI

1 X HDMI  HDMI

1 X BNC  Y

1 X BNC  Pb

1 X BNC  Pr

1 X BNC  Video

2 X RCA  Audio(L/R)

1 X DB-9  Tally

Output:

1 X BNC  3G-SDI

1 X HDMI  HDMI

1 X BNC  Y

1 X BNC  Pb

1 X BNC  Pr

1 X BNC  Video

Audio Output

Earphone slot, speaker

SDI support format:

480i/576i

720p(60/59.94/50/30/29/25/24/23.98)

1080i(60/59.94/50)

1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)

HDMI support format:

480i/576i/480p/576p

1080i (60/59.94/50)

720p (60/59.94/50/30/29/25/24/23.98)

1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)

4K UHD 3840×2160p (30/29.97/25/24/23.98 Hz), 4096×2160p (24Hz)

Other Specifications:

Input Voltage:  DC7~24V

Power consumption  ≤12W

Power supply:  DC/ 4-pin XLR

Battery plate: F970(standard);D28S,LP-E6,V mount/Gold mount(Optional)

Working temperature: -20°C~55°C

Storage temperature:  -30°C~65°C

Install Way: 1/4"-20 quick release thread socket (3 sides left&right&bottom)

Dimension:  258L×192H×39D mm

Weight:  810g

Functions:

* Brightness histogram

* Audio column

* Focus assist (red, green and blue focus colors are optional)

* False-color

* Zebra pattern overexposure remind (1-100IRE adjustable)

* Monochrome display (black, white, red, green, blue)

* Camera mode

* Deformation mode (1.3x, 2.0x, 2.0x mag)

* Image flip (horizontal, vertical, horizontal & vertical)

* Image freeze

* Center mark

* Frame mark (80%, 85%, 90%, 93%, 96%, 2.35:1)

* Scale mark (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)

* Color temperature adjustment

* Sudoku (split image can enlarge to full screen) (not support in 4K signal mode)

* Image zoom (4X, 9X, 16X) (not support in 4K signal mode)

* Display ratio (not support in 4K signal mode)

* Point-to-point (not support in 4K signal mode)

* Global scale zoom (not support in 4K signal mode)

* Up and down zoom (not support in 4K signal mode)

* Left and right zoom (not support in 4K signal mode)
