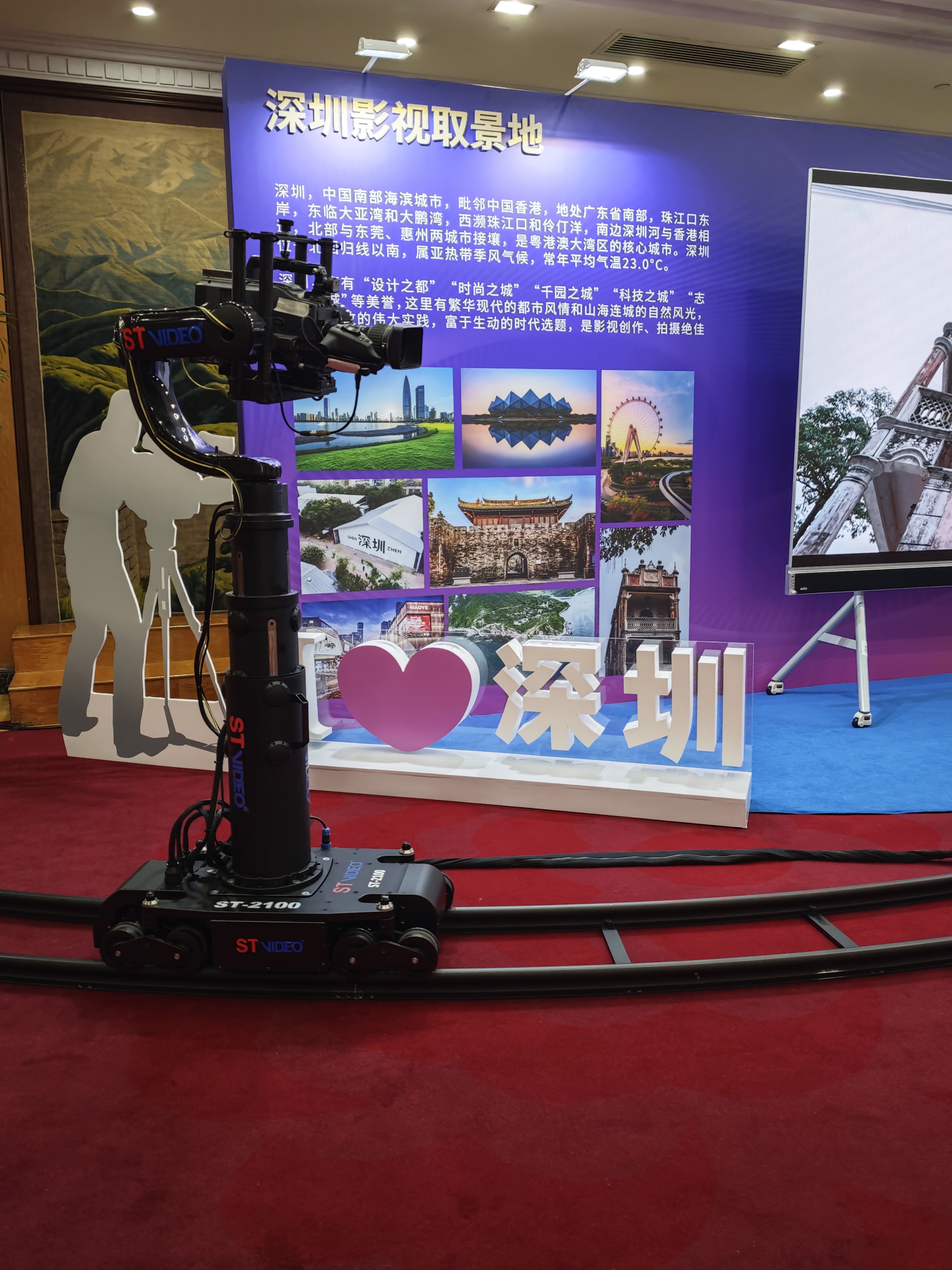

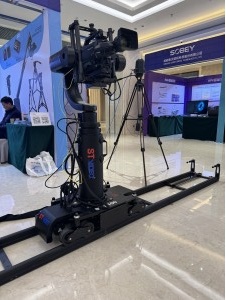

ST-2100 ROBOT TOWER with GYROSCOPE HEAD
ST-2100 Gyroscope Robot is the automatic track camera system independently developed by ST VIDEO over the 7 years, which integrates movement, lifting, pan-tilt control, lens control and other versatile functions. The remote head adopts a gyroscope stabilization system, with a payload capacity up to 30kgs, which can meet the installation and use of various types of broadcast cameras and cameras. The robot dolly is mainly suitable for studio program production, live broadcast of cultural evenings and variety shows, etc.. With the ST-2100, one person can easily control and fulfill camera raising, lowering, pan and tilt, shifting, focus & zoom of the camera. It can be used with VR/AR studios with camera position & displacement data output function.
Features as advantage with comparison
Stable three-axis electronically controlled remote head with gyroscope, making pan tilt, side retating more stable and smooth, the system can be set as automatic and manual control, and can be equipped with camera displacement data output function, to work with VR/AR studios, and it can be preset to run Speed, position, speed up and so on. Autopilot, control freely.
Configuration and function
ST-2100 Gyroscope Robet is consisted of dolly, pedestal, gyroscope remote head, control panel etc. It is made by high strength alluminum alloy, with exquisite appearance. The dolly adopts three-direction positioning track moving mode, with motion backed up by 2 sets of DC motor synchronous driving servo, running smooth and controlling the direction precisely. The lifting column is designed with three-stage synchronous lifting mechanism, lifting travel large. And multi-point positioning is adopted, making the lifting movement of the column smooth with low noise. The gyroscope head adopts a U-shaped structure design, which bears weight up to 30KGS, and can meet the installation and use of various types of broadcast cameras and cameras. Through the control panel, it is easy to control camera raising, lowering, pan & tilt, shifting, side-rolling, focus & zoom and other functions. It can be used with VR/AR studios with displacement data output function. It can preset the running speed, with 20 preset positions, preset speed up, etc.. It can also be controlled manually. Autopilot, control freely.

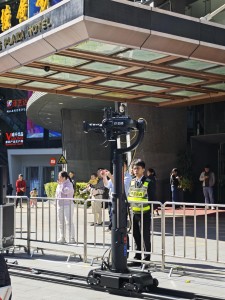

ST2100A robot tower is made by high-strength aluminum alloy, with exquisite finished molding in good appearance. The car body adopts a three direction positioning track moving mode, with motion backed up by two sets of DC motor synchronous driving servo, running smoothly and controlling the direction precisely. The column adopts the design of telescopic three-stage lifting synchronously, lifting travel in large. The eight positioned design ensures the column lift in stable and soundless. The remote head structure uses a L-type open design with big payload, which can work with all types of broadcasting and film cameras, meanwhile it can control the camera in pan & tile, focus & zoom & iris, VCR, etc. ST2100A robot tower is greatly applied to studio program productions and live shows or broadcasts. It supports the data output in virtual studio application. It is easy and friendly for use, one person can easily control the car body and the camera's lifting, moving, pan & tilt & side rotating & focus & zoom & Iris. It is a best choice for TV station and film production.
Highlights
| Gyroscope Remote Head Parameter | Dolly Car and Scopic Tower Parameter | ||
| Communication interface: | CAN-BUS RS-485 | Maximum moving speed: | 3m/s |
| PTZ orientation: | ±360° | Maximum lifting speed: | 0.6m/s |
| PTZ pan tilt: | ±80° | Lifting range: | 1.3-2.1m |
| Gimbal side roll: | ±60° | Maximum track length: | 100m |
| Maximum angular velocity: | 90°/s | Track width: | 0.36m |
| Stable accuracy: | ≤80 micro arc | Base width: | 0.43m |
| PTZ load: | ≤30kg | Dolly payload: | 200kg |
| Data output: | FREE-D | Overall weight: | ≤100kg |
| Control distance: | ≥1000m | ||
| System Characteristics | System Consumption | ||
| Preset positions: | 20sets | Rated voltage: | DC24 or AC110/220V |
| Cruise function | Power consumption: | ≤1kw | |
| PTZ speed/buffer independent setting | |||
| Virtual access: | optional |
Configuration
1. Gyroscope remote head, anti-shaking, realize the great balance and stability.

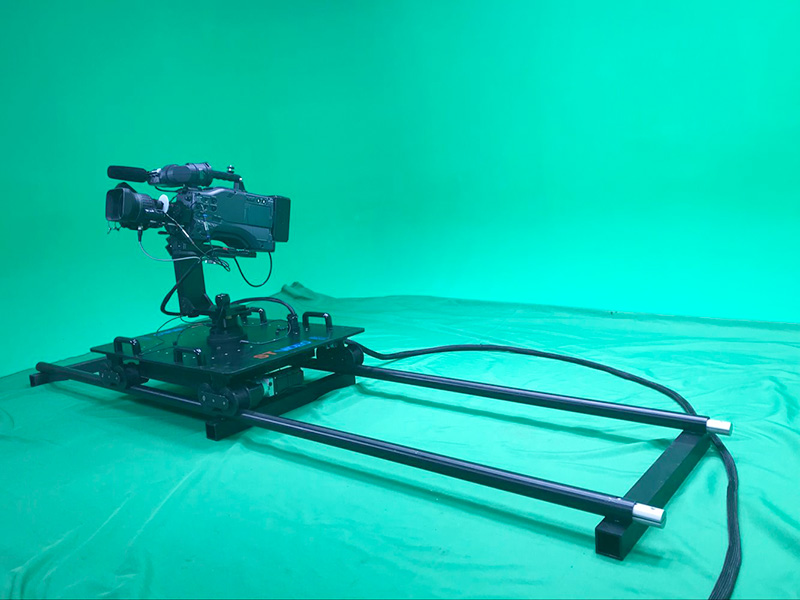

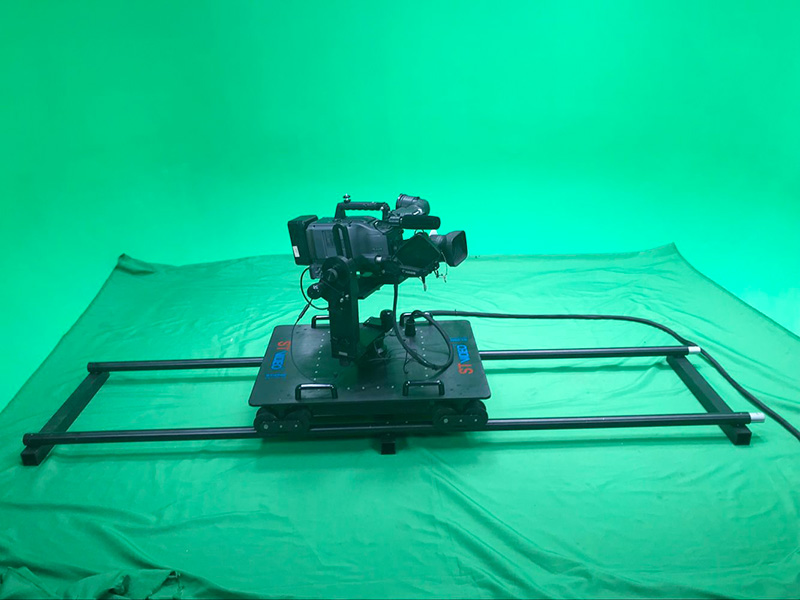

2. Robot dolly car
3. Scopic tower
4. Control panel for pan/tilt/focus/iris, car moving
5. Control cable 20m
6. Straight track rail 16m, 2m/section (Curved track rail optional, 2m/section, radius 6m, more curvatures available for customization).
Configuration
1. Gyroscope remote head, anti shaking, realize the great balance and stability.
2. Robot dolly car
3. Scopic tower
4. Control panel for Pan/Tilt/Focus/Iris, car moving
5. Control cable 50M
6. Straight track rail 25M
